14K ISR SuperGlide
SuperGlide Auto-Sliding SAE J2638

14K ISR SuperGlide

Highest-capacity super short bed SuperGlide with 22-3/4" of auto-slide travel, plus built-in wheels for easy install and removal.

Lifetime Warranty American Made Since 1974 Free US Tech Support
Part #3200
14,000 lbs
GTW Rating
3,500 lbs
Pin Weight
246 lbs
Total Weight
5 Year, Limited
Warranty

Requires a Quick Connect Capture Plate

This hitch requires a capture plate matched to your trailer's king pin box, sold separately. You must select the correct capture plate for your specific trailer brand.

Find Your Capture Plate
Key Features

What Sets It Apart

14,000 lbs. max gross trailer weight towing capacity
3,500 lbs. max trailer pin weight capacity
22-3/4" of fully automatic slide
A Capture Plate is required to activate the sliding cam arm
Base Wheels help you move the #3200 with ease
Dual articulating head moves side-to-side and front-to-back during towing for a smoother ride
Hitch head easily removable with pins and clips...no tools needed
Locking jaw closes automatically around king pin
Latch handle locks automatically when locking jaws are engaged
No secondary locking devices to engage means no reaching over high-sided truck beds to get dirty
Extended handle keeps you out of the bed
Precision, laser cut jaw components rotate around the rearward portion of the trailer’s king pin 140º,  for a tight-fitting 320º of connection
Tight fitting parts give you the best ride possible
Adjustable tension bolt prevents bumping or chucking
Hitch comes fully assembled
Feet are adjustable to center hitch over axle
#4424 Gooseneck/Horse Trailer Adapter available
SAE J2638 tested
Made in the USA
American Flag

About the SuperGlide

The SuperGlide is PullRite's flagship fifth wheel hitch and the only fully automatic sliding hitch on the market. Engineered specifically for short bed trucks, SuperGlide eliminates the cab clearance problem that plagues every short bed owner towing a fifth wheel trailer. There are no levers to throw, no switches to flip, and no getting in and out of the truck before and after every turn. Just get in and drive.

During turns and backing maneuvers, the SuperGlide's patented cam-action system automatically moves your trailer away from the cab along its rails, then returns it to the towing position when you straighten out. The result is a full 90-degree turning capability that other hitches simply cannot match. Manual slide hitches require you to stop, exit the vehicle, engage a lever, make your turn, stop again, and re-engage. SuperGlide does all of this in real time, without you lifting a finger.

Every SuperGlide is built around PullRite's patented fully automatic locking jaw — the only self-locking handle on the market. There are no secondary locking devices to manually engage, which means no reaching over high-sided truck beds. The precision, laser-cut jaw components cradle the trailer's king pin at 140 degrees for a secure, tight-fitting 320 degrees of connection. The dual-articulating hitch head moves side-to-side and front-to-back, delivering a smoother ride over uneven roads and allowing you to couple and uncouple on uneven ground without jacking or shimming.

The hitch head is easily removable with pins and clips — no tools required — reducing the lifting weight by 40 lbs. or more. An adjustable tension bolt prevents bumping or chucking during travel. A Capture Plate (sold separately) is required to activate the sliding cam arm and is attached to your trailer's skid plate.

Every SuperGlide is SAE J2638 tested, accurately weight rated, and manufactured in the USA from high-quality American steel.

About This Model

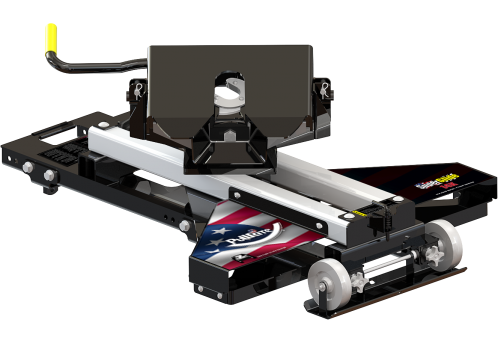

The #3200 ISR Series SuperGlide is engineered for super short bed trucks with beds under 6 feet. With 22-3/4 inches of fully automatic slide travel, it provides the maximum cab-to-trailer clearance available, moving the trailer away from the cab during turns and backing without any driver intervention.

Rated at 14,000 lbs. gross trailer weight and 3,500 lbs. pin weight, the #3200 steps up to handle heavier trailers than the 12K model while retaining the same extended slide travel. It mounts to any industry standard rail system, with the option to upgrade to PullRite's stronger ISR Series rails.

The #3200 features built-in Bed Saver Wheels for effortless installation and removal. Loosen the Bed Saver Knobs, flip the Bed Saver Foot up to expose the wheels, and roll the hitch in or out of the bed. A Capture Plate is required to activate the sliding cam arm and is sold separately.

Specifications

Mounting Type ISR Rails
Hitch Style Auto Slide
Dimensions (W × L × H) 38.00" × 50.50" × 17.00"
Slide Travel 22.75"
Base Weight 203 lbs
Hitch Plate Weight 43 lbs
Finish Black, powder coat
Weight Class 14K

Will This Fit Your Truck?

Pick your truck and bed setup — we'll confirm fitment instantly.

Pick year, make, model, bed length, and bed prep — about 30 seconds. No need to leave the page.

Watch It Work

See It In Action

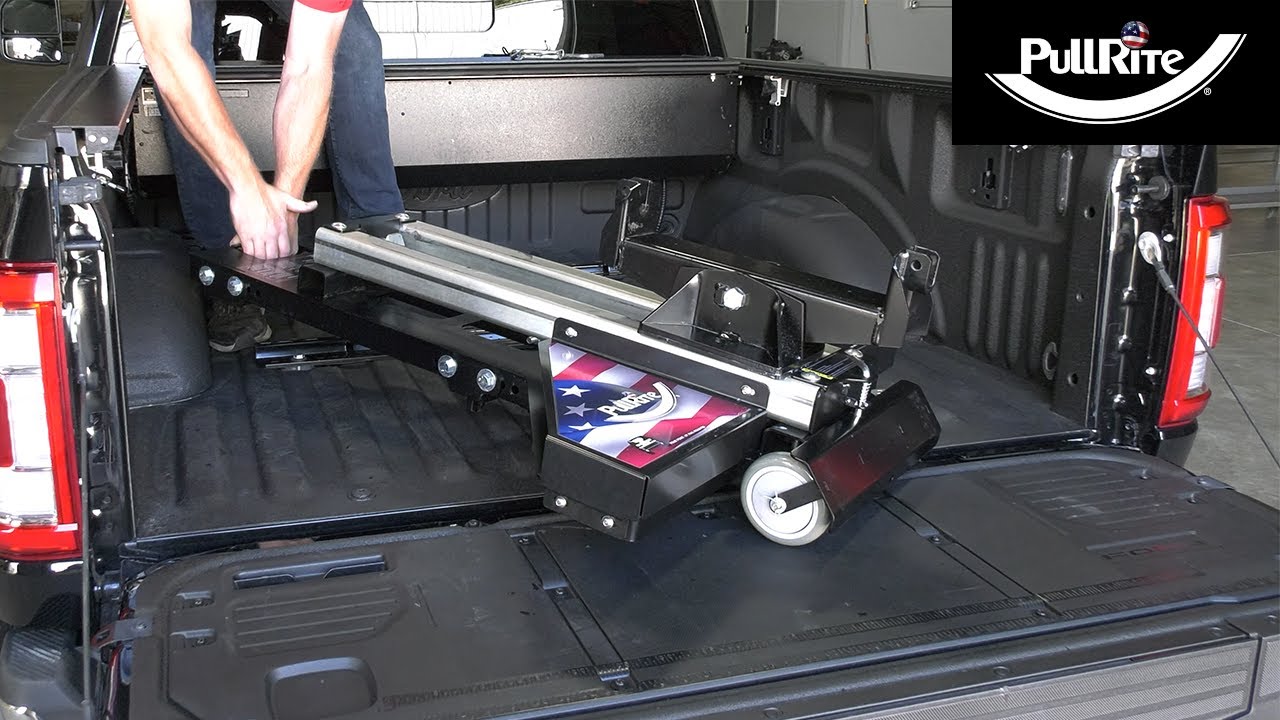

#3200 SuperGlide by PullRite...the BEST fifth wheel hitch for super short bed towing!
