Complete reference table for all capture plate fitments. Click to expand.

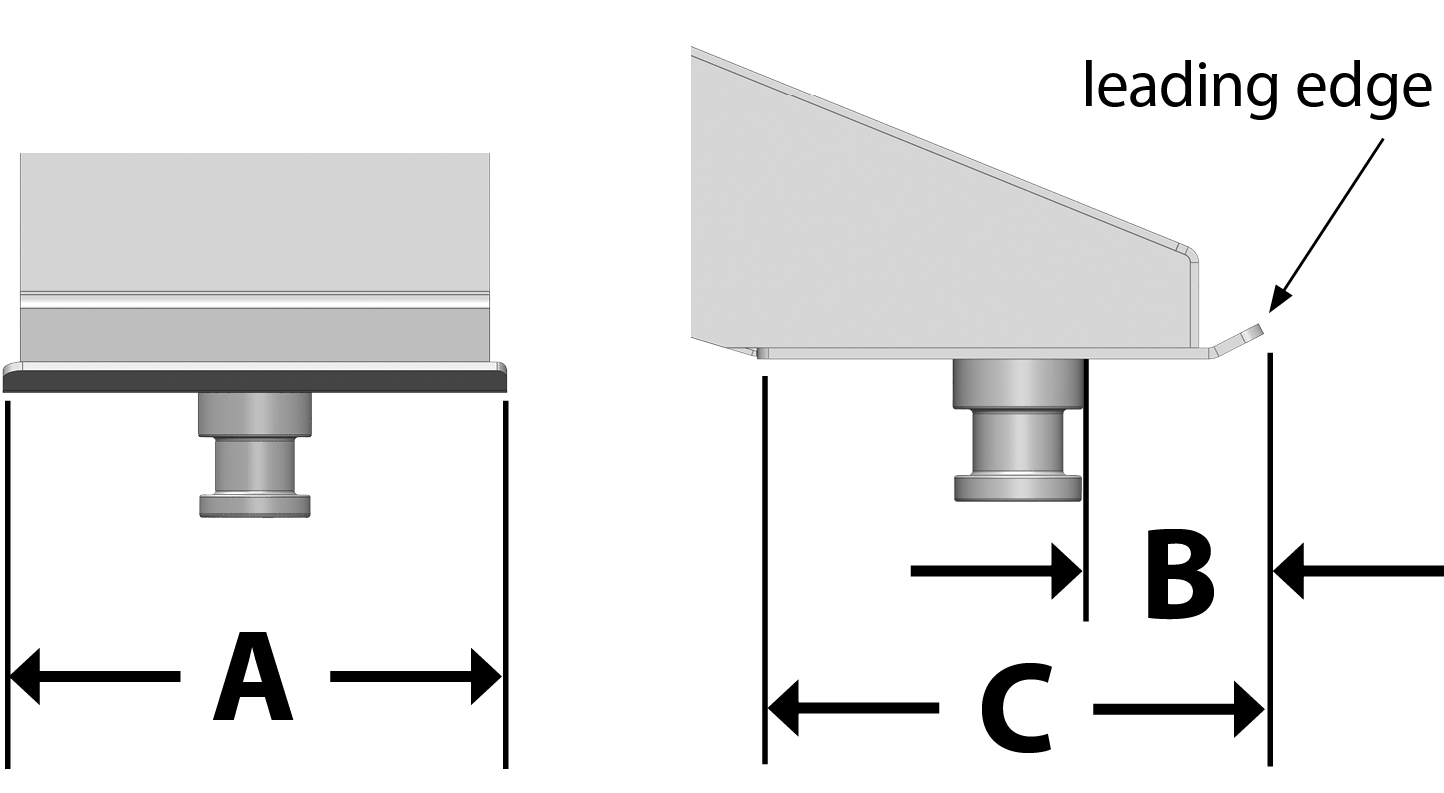

| Manufacturer | Model | Variant | A (Width) | B (Depth) | C (Bolt) | Part # | Notes |
|---|---|---|---|---|---|---|---|
| Most Popular | |||||||

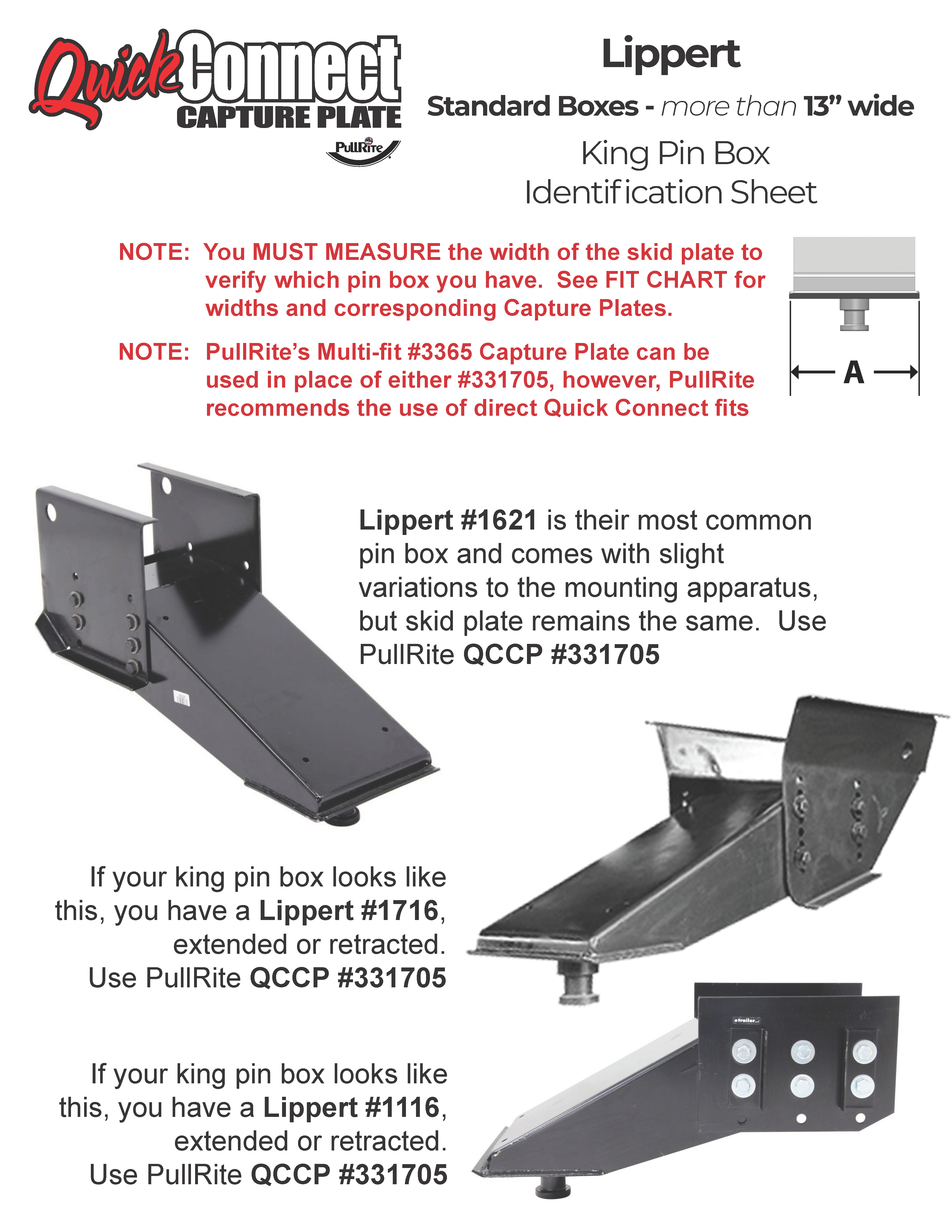

| Lippert | 1621 | more than 13" wide | 13-1/4" | 3-3/8" | 8-7/8" | 331705 | |

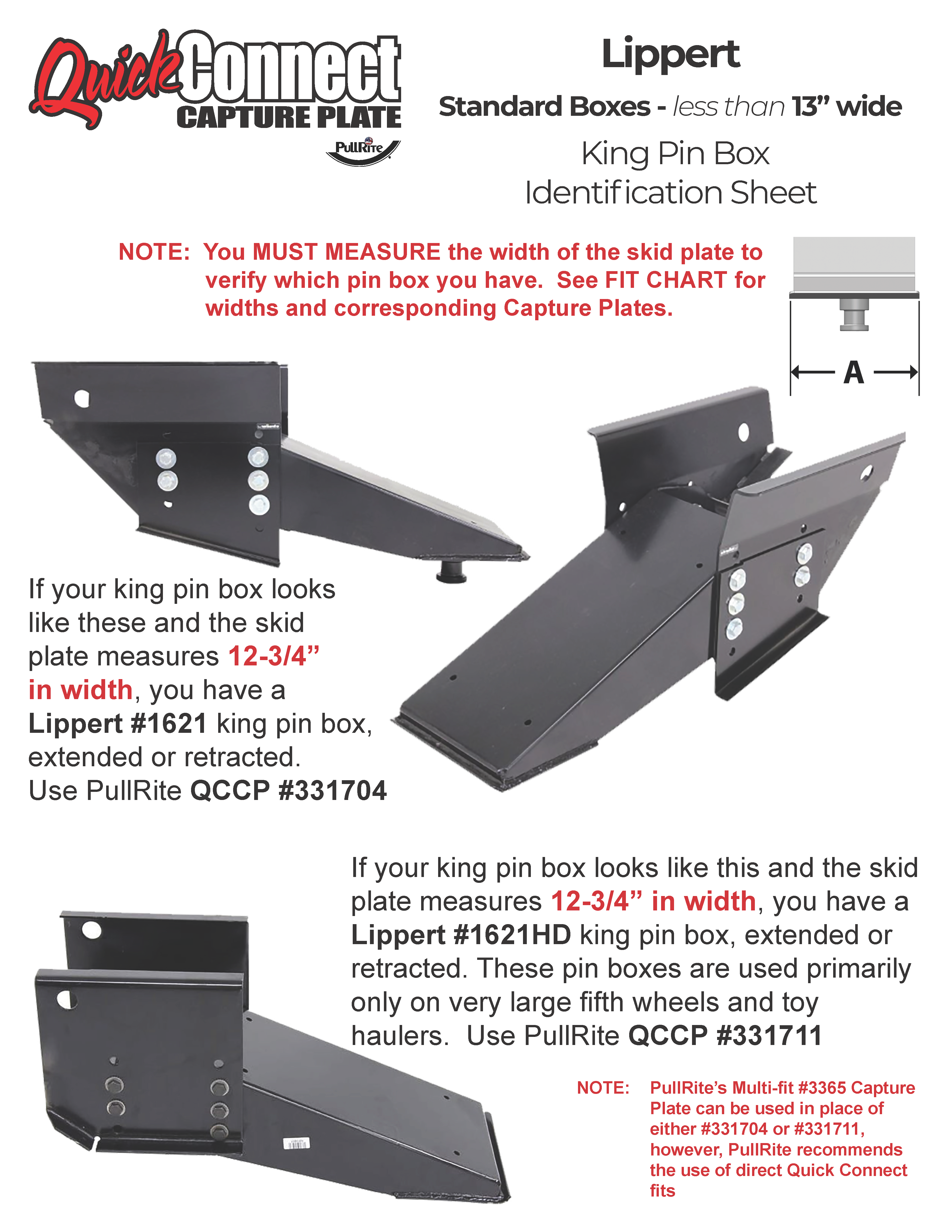

| Lippert | 1621 | less than 13" wide | 12-3/4" | 3-3/8" | 8-7/8" | 331704 | |

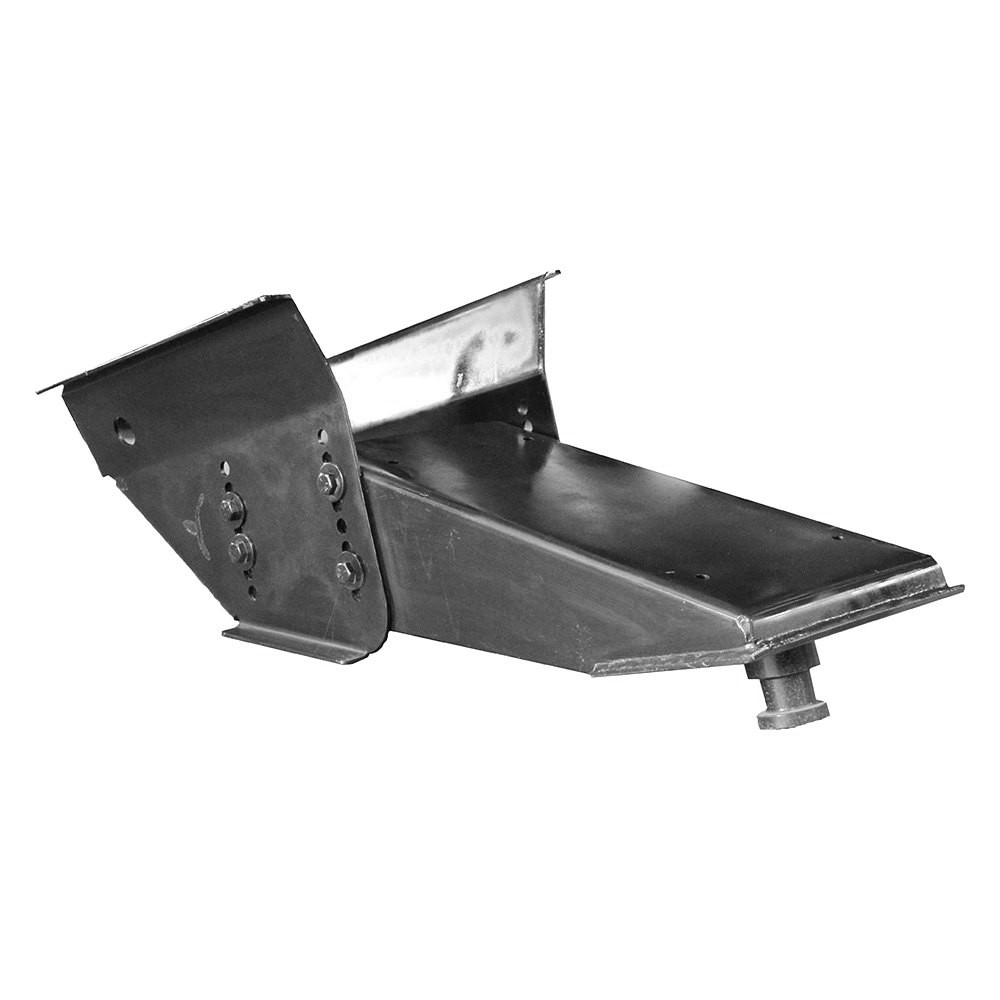

| Lippert | 1116 | more than 13" wide, long | 13-1/4" | 3-1/2" | 9-3/16" | 331705 | |

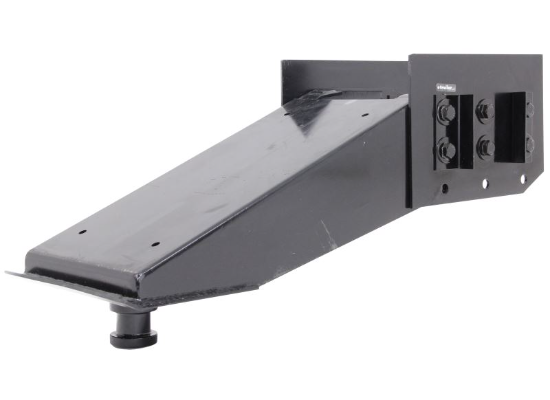

| Lippert | 1716 | more than 13" wide, medium | 13-1/4" | 3-1/4" | 8-7/8" | 331705 | |

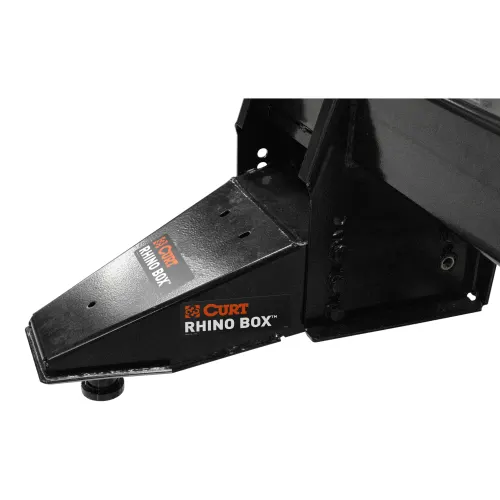

| Lippert | Rhino | — | 7-3/8" | 2-5/16" | 7-3/4" | 331723 | |
| Lippert | Helux | — | 13-3/16" | 6-3/4" | 11-13/16" | 331725 | |

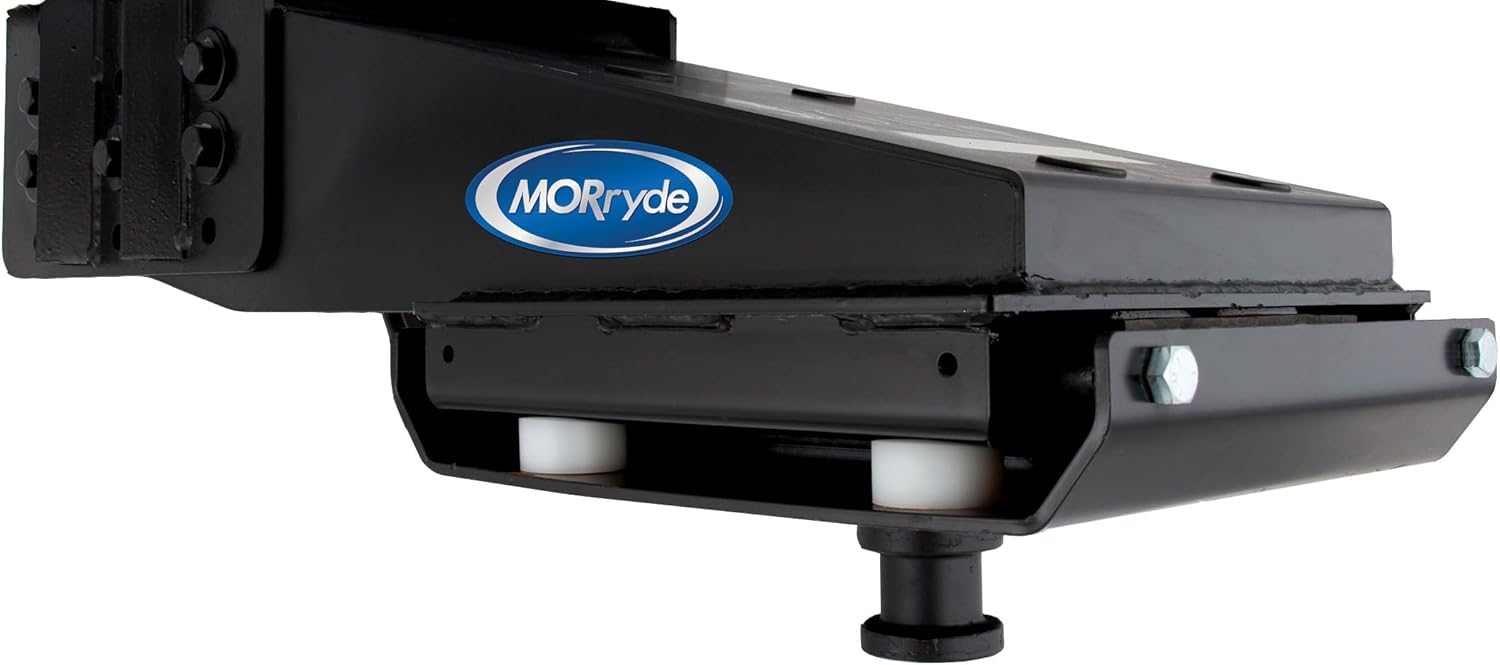

| MOR/ryde | Rubber Cushion | — | 13-1/2" | 7-5/16" | 17-1/2" | 331707 | do not use w/ Universal or Multi-fit Capture Plates |

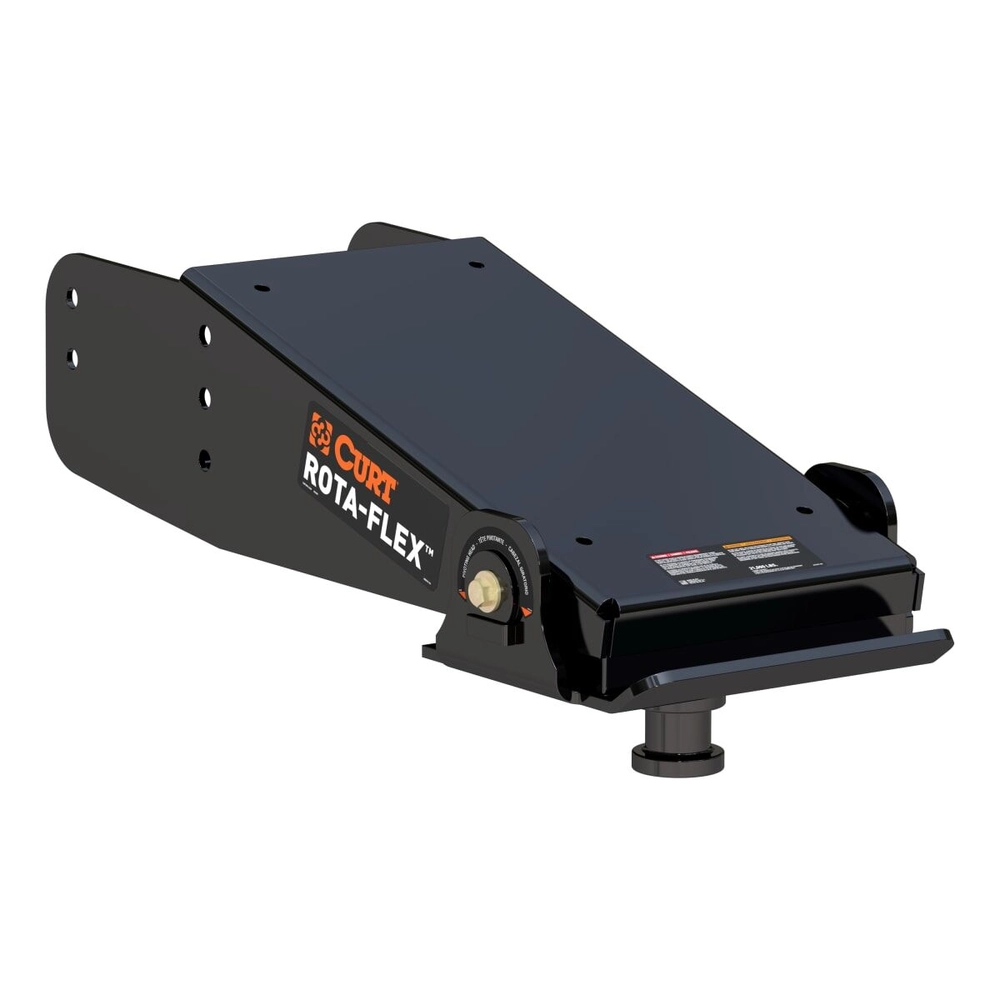

| Trailair | Rota-Flex/Road Armor | — | 11-7/8" | 5" | 11-5/16" | 331760 | do not use w/ Universal or Multi-fit Capture Plates |
| All Brands (Complete Reference) | |||||||
| 5th Airborne | Most Models | — | 10-1/2" | 6-7/8" | 14-1/4" | 331709 | |
| 5th Airborne | Most Models | Large | 12" | 7-7/8" | 19-7/8" | 331759 | |
| Demco | Most Models | — | 10-3/4" | 5" | 11-7/8" | 331750 | not for use w/ Universal |
| Demco | Most Models | Large | 11-1/4" | 5-1/8" | 12-1/16" | 331751 | not for use w/ Universal |
| Dexter | Most Models | — | 12" | 5-9/16" | 12-1/4" | 331731 | |
| Fabex | 500's, 765, 770 | — | 13-1/2" | 3-1/4" | 9-1/4" | 331720 | |
| Fabex | Most Models | — | 12" | 4-5/8" | 11-3/8" | 331706 | |
| Gen-Y | Gen-Y | — | 12" | 4" | 10-15/16" | 331726 | |
| Leland | Most Models | — | 14" | 5-1/2" | 12-1/4" | 331730 | |

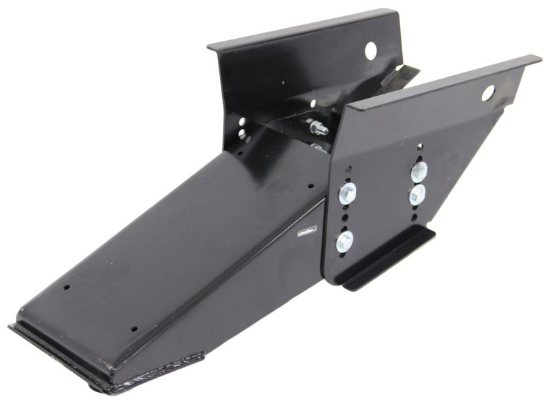

| Lippert ★ | 1621 | more than 13" wide | 13-1/4" | 3-3/8" | 8-7/8" | 331705 | |
| Lippert ★ | 1621 | less than 13" wide | 12-3/4" | 3-3/8" | 8-7/8" | 331704 | |
| Lippert ★ | 1116 | more than 13" wide, long | 13-1/4" | 3-1/2" | 9-3/16" | 331705 | |
| Lippert ★ | 1716 | more than 13" wide, medium | 13-1/4" | 3-1/4" | 8-7/8" | 331705 | |

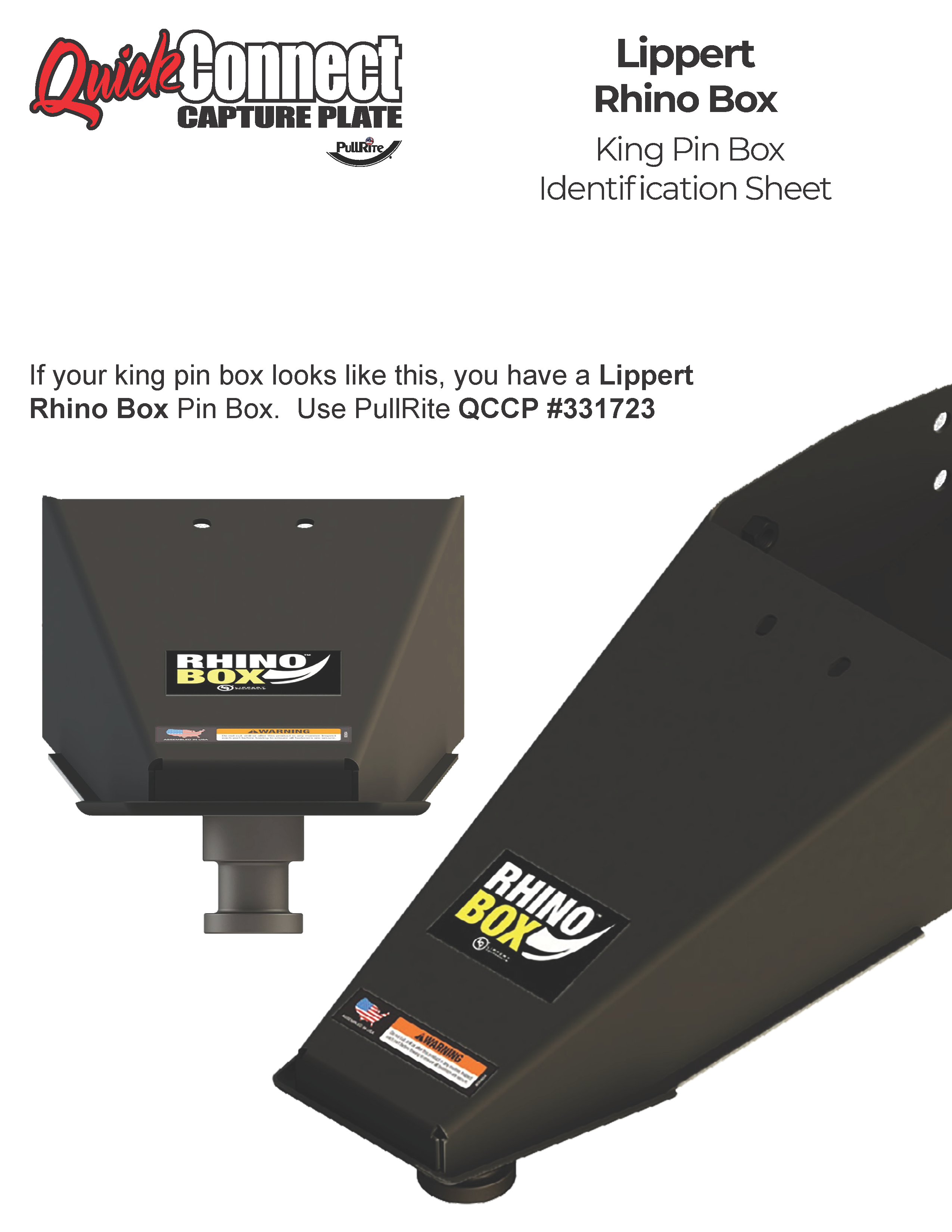

| Lippert ★ | Rhino | — | 7-3/8" | 2-5/16" | 7-3/4" | 331723 | |

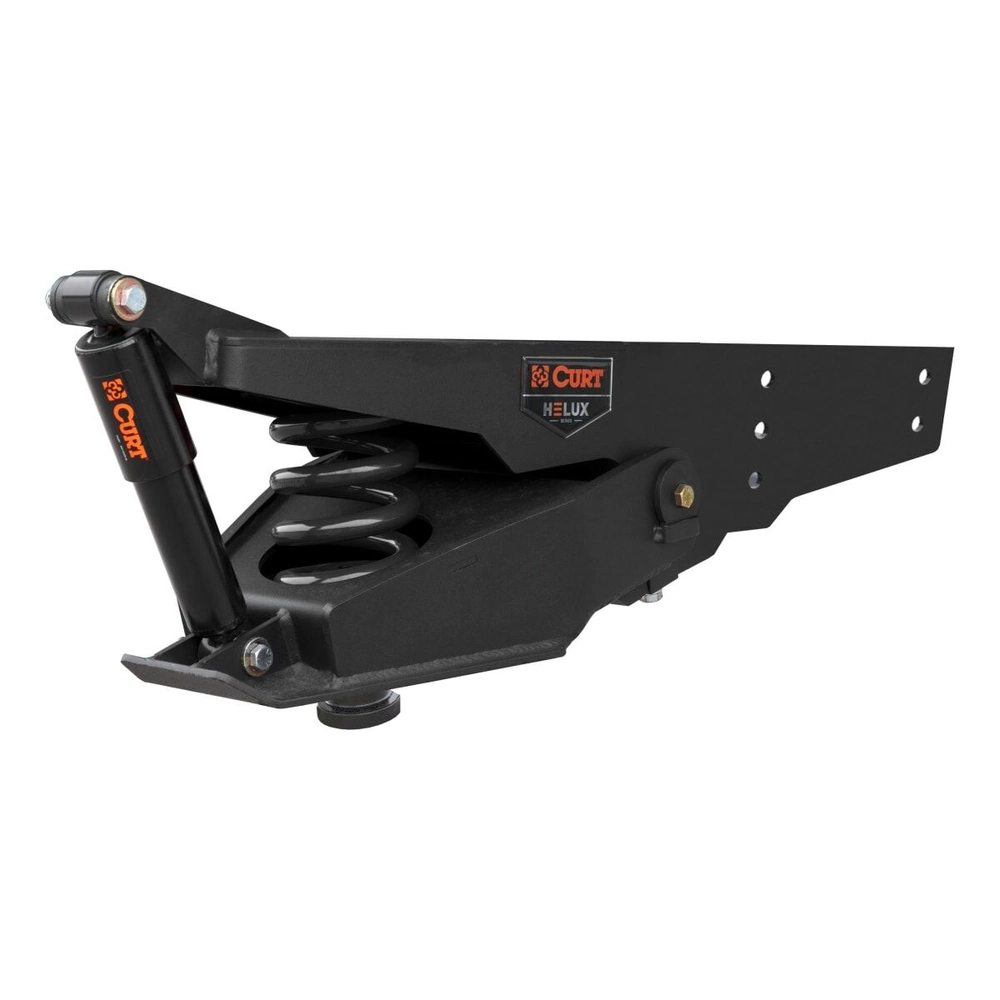

| Lippert ★ | Helux | — | 13-3/16" | 6-3/4" | 11-13/16" | 331725 | |
| Lippert | 1621 HD | less than 13" | 12-3/4" | 4" | 8-7/8" | 331711 | |
| Lippert | 0719 | — | 12-3/4" | 6-3/8" | 12-1/4" | 331710 | |

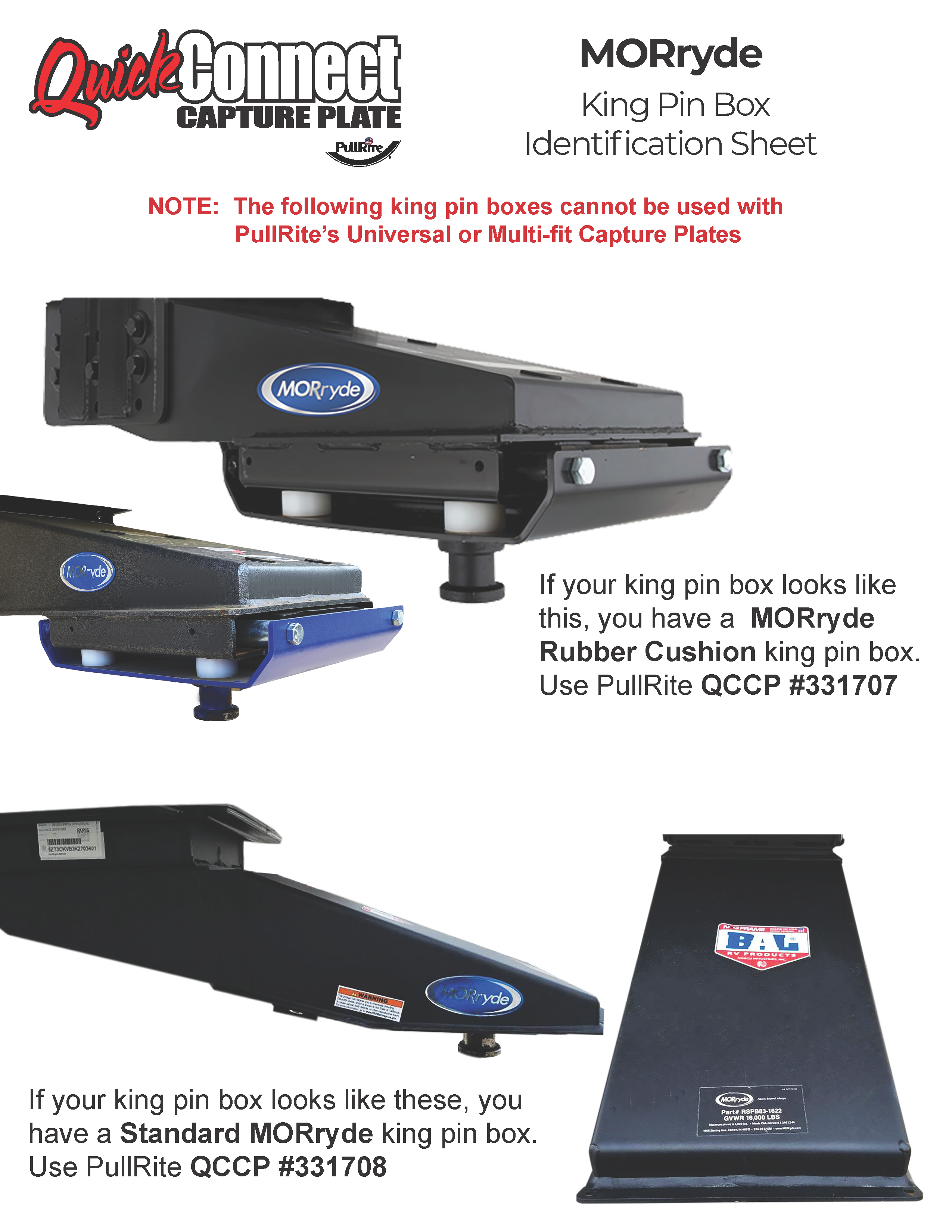

| MOR/ryde ★ | Rubber Cushion | — | 13-1/2" | 7-5/16" | 17-1/2" | 331707 | do not use w/ Universal or Multi-fit Capture Plates |
| MOR/ryde | Standard | — | 12-1/2" | 4-1/8" | 8-7/8" | 331708 | do not use w/ Universal or Multi-fit Capture Plates |
| Reese Revolution | 10K Pin Box | — | 10-1/2" | 4-1/4" | 11" | 331721 | |
| Reese Revolution | 16K or 21K Pin Box | *16K uses spacers | 13" or 12-1/2" | 4-1/4" | 11-3/4" | 331721 | |

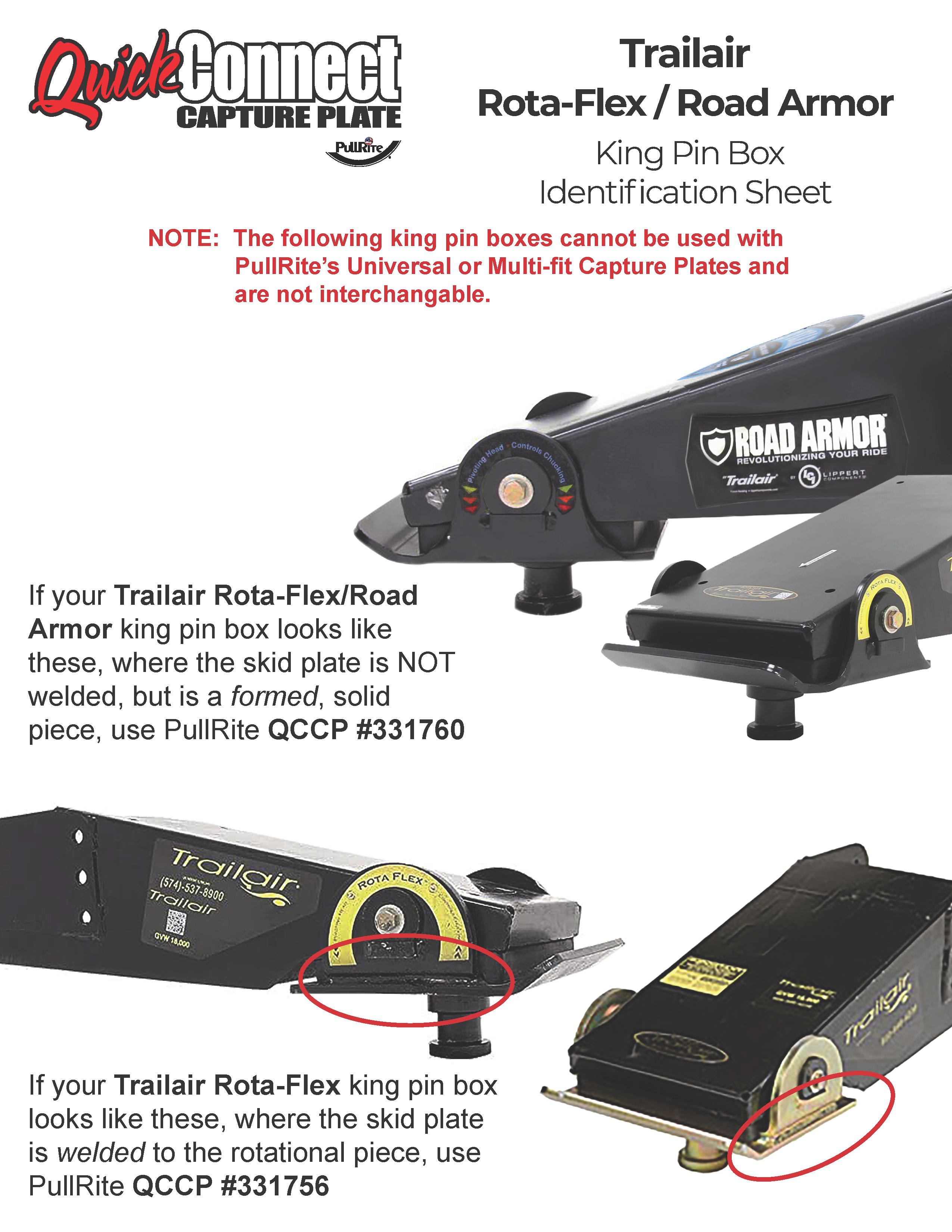

| Trailair ★ | Rota-Flex/Road Armor | — | 11-7/8" | 5" | 11-5/16" | 331760 | do not use w/ Universal or Multi-fit Capture Plates |
| Trailair | Flex-Air | — | 13-1/4" | 6-1/8" | 12-3/4" | 331761 | |
| Trailair | Rota-Flex/Road Armor | — | 13-3/8" | 5-3/8" | 11-7/16" | 331756 | do not use w/ Universal or Multi-fit Capture Plates |
| Trailair | Tri Glide Airbag/Shock Pin Box | — | 12-3/4" | 5-15/16" | ALL | 331757 | |
| Trailair | Airbag/Shock Pin Box | — | 13" or 13-3/8" | 7-3/8" | 13-1/2" | 331758 | |
